System features:
• PC/PLC Control Standard
• -53C or -855C Condenser Temperature
• 30L Condenser Capacity
• Remote Condenser with Hot Gas Defrost
• From 1 to 5 Shelves in Bulk or Stoppering
• -48C or -70C Shelf Temperature
• Fluid Filled Hollow Shelves, 12"x 24" Each
• Rectangular 316L Chamber
• Hydraulic Stoppering
• Pirani Pressure Control and Gas Backfill
Standard
• Optional Manifold
System
performance:
Shelf pull down from +20 to
-40C in less than 30minutes
Temperature resolution 0.1 C
Vacuum pull down to 100 mT
in less than 15 minutes
Vacuum leak rate less than
30 mT per hour
Achieves vacuum level of 5
mT in clean dry systems
|
|
|
Research Series is a new
generation laboratory research freeze dryer that is both a shelf and
manifold dryer. Product can be loaded on the shelves and frozen prior to
drying or can be frozen in an optional shell freezer for manifold
drying. A rectangular chamber offers a compact profile with either
stoppering or bulk assembly. Hydraulic stoppering is provided by a bottom
up hydraulic cylinder. Both options have a radiant heat plate above
the top shelf for uniform drying on all shelves. All internal surfaces
are constructed of 316L stainless steel and offer a polish of 20 Ra
or better. A coil condenser is located between the product and the
vacuum pump providing maximum condensing surface area and vacuum
pump protection. A 4" vapor port connects the two chambers,
with a 6" option. An isolation valve can be added for end of
drying testing. Hot gas is used for defrosting the condenser when drying
is complete.
Fluid filled hollow shelves with a serpentine fluid path
provide the most uniform shelf temperature possible resulting in
consistent and repeatable drying. All units come with one product
tray per shelf, either a removable bottom or bulk.
Options include a Shelf Latching Kit, Isolation Valve,
Capacitance Manometer, Moisture Sensor, Clean Room Configuration,
Sample Extractor, 6"/8" vapor ports.
|
Specifications:
|
Model
|
RD 53
|
RD 85
|
|
Condenser
Temp
|
-53 C
|
-85 C
|
|
Condenser
Capacity
|
20 liters/24 hours (30 liters
max.)
|
|
Shelf Temperature
|
-48 C to +65 C
|
-70 C to +65 C
|
|
Refrigeration
|
3.5 HP Scroll
CFC-Free
|
3.5 HP and 2 HP
CFC-Free
|
|
Defrost
|
Hot Gas - Automatic
|
|
Vacuum Pump
|
400
l / min.
|
|
Cabinet
Dimensions
|
35"W
x 42"D x 73" H
|
|
Voltage
|
208-240V,
50/60Hz,
1PH, 20A
|
All the freeze dryers are built
to meet the most exacting current Good Manufacturing Practices (cGMP)
standards.
|
Shelves
|
Area
sq ft/sq m
|
Clearance
in/mm
|
|
1
2
3
4
5
|
2/.186
4/.373
6/.559
8/.746
10/.932
|
11.5/292
5.5/139
3.5/89
2.5/63
1.9/48
|

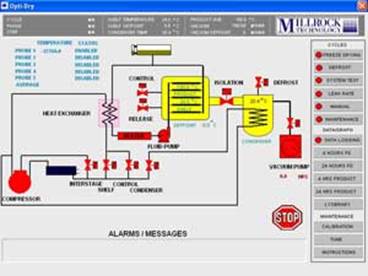

Opti-Dry™ Control Features
|
Automatic
|
10 Freezing Steps
16 Drying Steps with Pressure Control
1 Step Secondary and 1 Step Final Drying
Alarms, Recipe Management, Data Logging
|
Maintenance
|
Independent Operation of Components, with
Troubleshooting and Calibration
|
|
Manual
|
Individual Switches for Shelf, Condenser, Vacuum,
Control, Isolation Valve, and Release. Single Set-points for Shelf and
Vacuum.
|
Opti-Dry (TM)
Plus
Features
|
Includes Opti-Dry Basic features
Eutectic Point Determination
Product temperature feedback
Optimizes the recipe, both freezing and primary drying, based on the
product temperature avg.
|
|
System Test
|
Performance Evaluation of Shelf,
Condenser, Vacuum, Heating, and Control
|
Opti-Dry (TM)
Pro
Features
|
Includes Opti-Dry Basic & Opti-Dry
Plus features
Primary Drying Endpoint
Determination Via: Pirani/Capacitance Manometer
Comparison
|
|
Defrost
|
Automatic Timed
Hot Gas
|
Leak Rate
|
Automatic Testing of System Performance
|
