K10190 Thin Film Aniline Point Apparatus



Test Method
Aniline point is used to characterize pure hydrocarbons and to indicate the aromatic content of hydrocarbon mixtures. Equal volumes of aniline and sample or sample plus n-heptane are stirred together while being heated at a controlled rate. After the two phases become miscible, the mixture is cooled at a controlled rate and the temperature at which the two phases separate is the aniline point or mixed aniline point of the sample.

Features and Benefits
• Conforms to ASTM D611 and related specifications

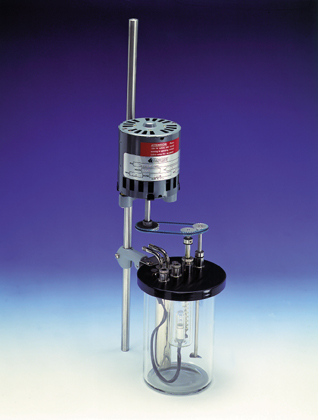

K10190 Thin Film Aniline Point Apparatus
For aniline point and mixed aniline point determinations according to Method B. Stirs aniline-sample mixture in a borosilcate glass thin film tube suspended in a heating bath. Thin film of mixture flows over a light well illuminated by a variable 6V lamp. Adjust heating rate per specifications using accessory Powertrol Heater. When lamp filament brightens inside well, allow mixture to cool until the two phases separate as indicated by obscuring of the lamp filament. Consists of thin film tube; 400mL Pyrex™ beaker; cover assembly with bath stirrer, sample pump rotor and cooling coil; 6V lamp with line cord; and drive motor. Positive drive pulley system rotates sample and bath stirrers. Accessory Powertrol Heater has variable stepless control and a reference dial for repeatable control of heating rate. Porcelain refractory top plate shields 75OW heater and has a positioning well for the Pyrex™ bath. Low voltage receptacle in heater housing accepts line cord of 6V lamp.

Specifications
Conforms to: ASTM D611; IP 2; ISO 2977; DIN 51775; FTM 791-3601

Bath Medium: 400mL of heat transfer fluid (355-000-001 mineral oil is suitable for this application)

Electrical Requirements
115V, 50/60Hz, Single Phase, 6.5A
220-240V, 50/60Hz, Single Phase, 13.4A

Included Accessories
Thermometer Ferrules (2)
Clamps and Support Rod

Dimensions lxwxh,in.(cm)
14.5x18.5x20.5 (37x22x53)
Net Weight: 24 lbs (10.9kg)

Shipping Information
Shipping Weight: 42 lbs (19.1kg)
Dimensions: 5.7 Cu. ft.

Ordering Information



Catalog
Number

Product Description

Electrical Requirements

K10190

Thin Film Aniline Point Apparatus

115V, 50/60Hz

K10191

Thin Film Aniline Point Apparatus

220-240V, 50/60Hz

K10020

Powertrol Heater

115V, 50/60Hz

K10029

Powertrol Heater

220-240V, 50/60Hz

Accessories



Catalog
Number

Product Description

Temperature Range

250-000-33F

ASTM 33F Thermometer

-36.5 to +107.5°F

250-000-33C

ASTM 33C Thermometer

-38 to +42°C

250-000-34F

ASTM 34F Thermometer

77 to 221°F

250-000-34C

ASTM 34C Thermometer

25 to 105°C

250-000-35F

ASTM 35F Thermometer

194 to 338°F

250-000-35C

ASTM 35C Thermometer

90 to 170°C



When inquiring about NIST traceable certified thermometers, please refer to the catalog number for the corresponding thermometer and replace the middle three zeros in the catalog number with 004. Example: 251-000-01C ASTM 1C Thermometer would be 251-004-01C ASTM 1C Certified Thermometer.
